Overlay & streaming

The overlay is a standalone, chrome-less telemetry page at /overlay designed to be added as an OBS Browser source, opened in TikTok LIVE Studio, or loaded on a phone / pit-wall tablet.

Layouts are built on a free-placement grid: drag any mix of widgets onto a snapping canvas, size each one from 1×1 up to 4×4 cells, and pick a visual style per widget (digits, bar, gauge, shift lights, …). Named layouts are saved on the server, so OBS gets a short, stable URL — edit the layout later and every browser source updates without touching OBS again:

http://<host>:8000/overlay?layout=race-strip

Building a layout

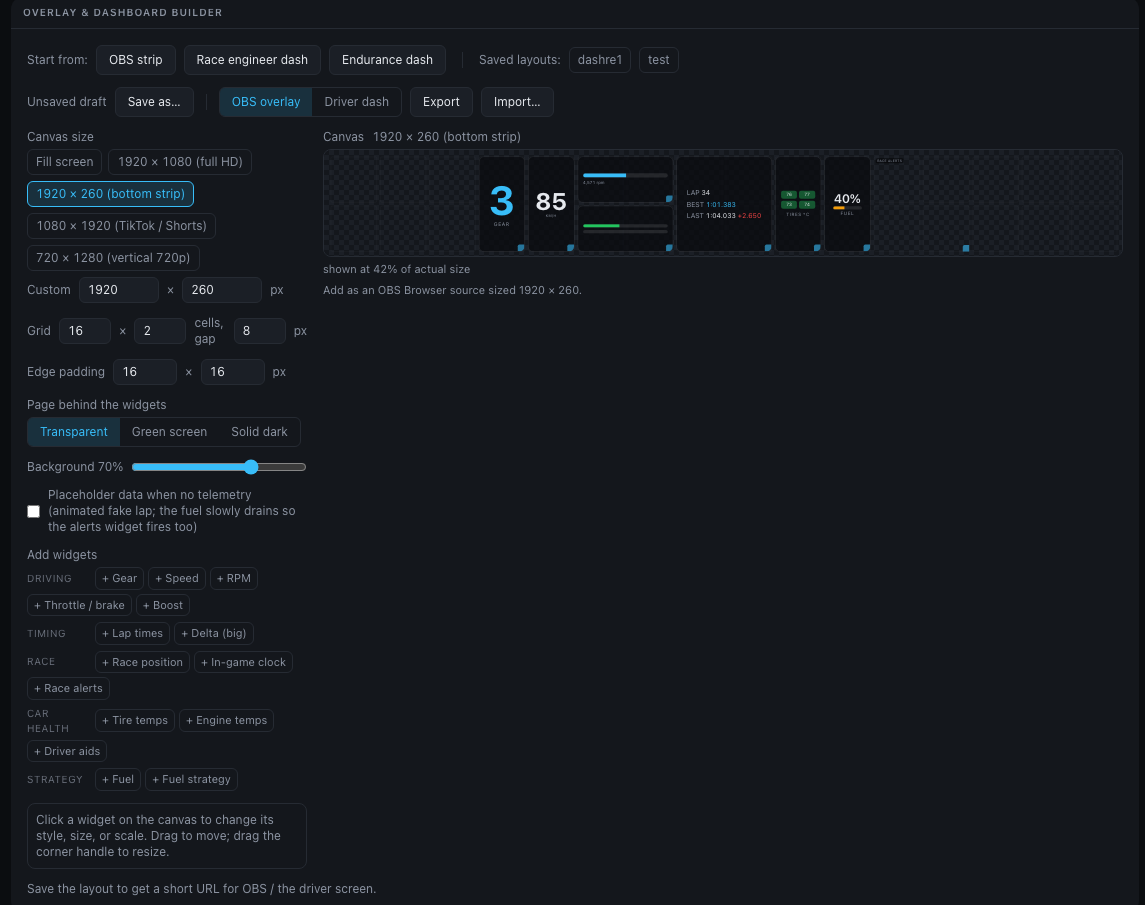

Open Admin → Overlay & dashboard builder. One-click starting points:

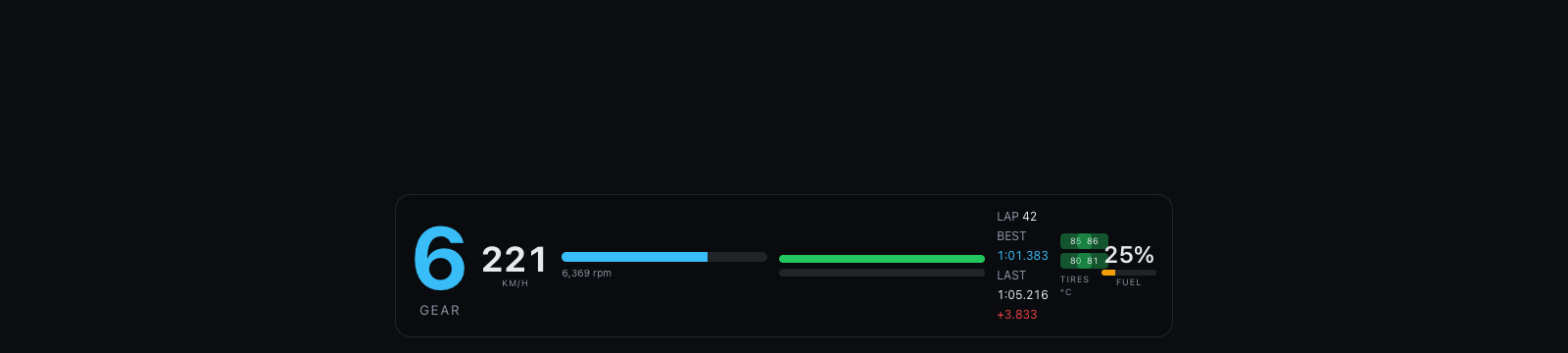

• OBS strip — transparent 1920×260 bottom strip
• Race engineer dash / Endurance dash — full-screen driver dashboards

Then work directly on the canvas:

• Drag a widget to move it — the ghost outline snaps to the grid and turns red on a collision.
• Drag the corner handle to step through the widget's allowed footprints (1×1, 1×2, 2×2, 4×4, …, depending on the widget).
• Click a widget to open its inspector: visual style, size, fine scale (50–200 %), or remove it.
• Add widgets from the grouped palette (driving / timing / race / car health / strategy); the same widget can appear more than once with different styles.

Canvas options:

• Canvas size — Fill screen, or exact-pixel presets: 1920×1080, 1920×260 strip, 1080×1920 (TikTok / Shorts), 720×1280, or any custom size. The overlay renders at exactly those pixels.
• Grid — columns × rows (up to 24×24) and the gap between cells.
• Page behind the widgets — Transparent (OBS Browser sources with alpha), Green screen (#00FF00 — chroma-key it in apps without alpha support), or Solid dark (phones/tablets).
• Background — card opacity (0 = bare floating widgets), edge padding.

Saving — Save as… stores the layout on the server under a name; the name becomes part of the URL (/overlay?layout=<name>). Rename, delete, and Save copy are one click away, and the builder lists every saved layout for quick switching. Layouts can also be exported/imported as JSON files — old URL-style overlay configs import too and are converted to grid layouts automatically. Presets saved by the previous builder version are detected on first visit and can be imported in bulk.

Widgets & styles

Widget	Styles
gear	digit + suggested-gear hint · digit only
speed	digits · bar · arc gauge
rpm	bar with SHIFT cue · shift-light LED strip · gauge · digits
inputs	horizontal throttle/brake bars · vertical bars
times	lap / best / last list · last lap (big) · best lap (big)
delta	live Δ vs the session-best lap (big number · centered ± bar)
position	big P n/total · compact
tires	2×2 color-coded temps · temps + slip indicator
fuel	percent · bar · laps remaining
strategy	fuel summary · pit-window countdown
clock	in-game time of day
engine	water/oil temps · detailed (+ oil pressure, boost)
aids	TCS / ASM / handbrake / rev-limiter badges
boost	digits · gauge
alerts	stacked warning banners · compact list (see driver dashboard)

The alerts widget renders nothing while all is well, so it stays invisible in OBS until a warning actually fires.

Full details for every widget — color thresholds, alert triggers, and behavior in each track condition — are in the widget reference.

Setting up OBS

1. Build and save your layout, then copy the Other devices URL.
2. In OBS: Sources → + → Browser, paste the URL.
3. Set the source's width/height to the same canvas size you picked in the builder.
4. Done — the transparent page mode gives you clean alpha compositing. If your app renders transparent pages as black, switch to Green screen and add a chroma-key filter for #00FF00.

If the stream drops, the overlay renders nothing (an empty source, not a frozen box) until telemetry resumes.

Placeholder mode

The placeholder data checkbox (or demo=1 on any overlay/dash URL) shows an animated fake lap only while no real telemetry is arriving, with a small amber placeholder tag. The fake lap's fuel slowly drains so the strategy and alert widgets get exercised too. The moment real data resumes it switches back automatically — safe to leave on.

Legacy URL parameters

Overlay URLs from earlier versions keep working unchanged — the whole config lives in the URL instead of on the server:

http://<host>:8000/overlay?w=gear:1.25,speed,rpm,times&layout=strip&size=1920x260&bg=70&align=bottom

Param	Values	Default
w	comma list of widget ids, each optionally id:scale (0.5–3)	gear,speed,rpm,inputs,times,tires,fuel
layout	strip · stack · grid	strip
scale	0.5–2 global zoom	1
bg	card opacity 0–100	70
align	top · center · bottom (strip/stack)	bottom
size	WxH exact pixels	fill source
pad	XxY edge inset px	16x16
page	transparent · green · dark	transparent (dark for grid)
demo	1 for placeholder data	off

These render through the original strip/stack/grid flow, pixel-identical to before. ?layout= with anything other than strip/stack/grid refers to a saved server layout by name or id.
